Products Description:

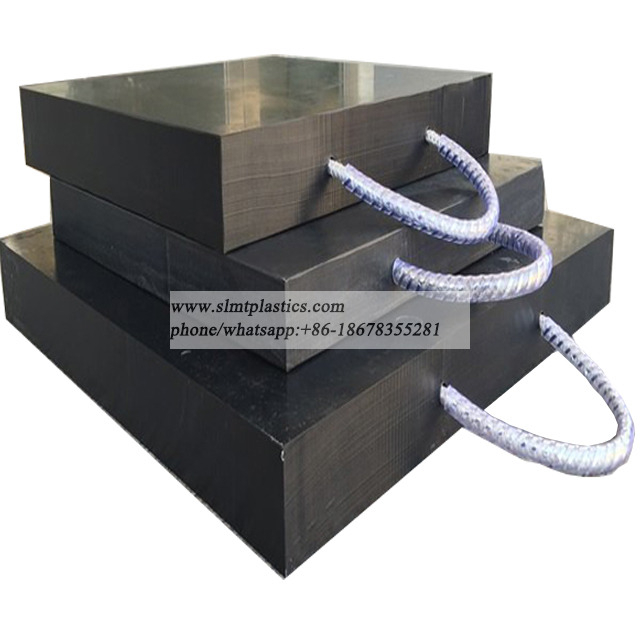

Heavy Crane Pad UHMWPE Outrigger Plate provide a super strong, rigid and easy to use foundation for a wide variety of outrigger enabled equipment. Constructed of engineered thermoplastic material, with a crush rating up to 750 psi and maximum allowable load ratings up to 300,000 lbs., PE outrigger pads crane mats plastic crane outrigger jack pad deliver the strength, stiffness and reliability you can trust.
1. Different surface
A Smooth Surface B Circle in Middle C Rhombus pattern in surface D Anti-slip Surface
2. Handle
A : With nylon rope and rubber sleeve B : With hole holder on top C : With Steel Chain
3. Shape
A : Square shape B:Round shape
Applications
PE outrigger pads crane mats plastic crane outrigger jack pad put under the support-leg Truck Crane, Crawler Crane, Rough Crane, Boom Pump, Concrete Pump, Fire Truck, Utility Truck, Tree Trimmer, Any type of Aerial Equipment and so on, for making the machine work safely.
Standard size of Ground Bearing Stabilizer Leg Pads for Heavy Equipment Crane:
| Size ( square ) | Weight ( kg ) | Weight Load ( kg/pad ) |
400 x 400 x 40 mm | 6.3 | 12,000 |
500 x 500 x 40 mm | 9.9 | 15000 |
600 x 600 x 40 mm | 14.2 | 20000 |
600 x 600 x 50 mm | 18.0 | 25000 |
600 x 600 x 60 mm | 21.2 | 30000 |
| 800 x 800 x 40 mm | 25.3 | 35000 |
800 x 800 x 50 mm | 31.3 | 40000 |
800 x 800 x 60 mm | 38.4 | 45000 |
1000 x 1000 x 50 mm | 48.0 | 50000 |
1000 x 1000 x 60 mm | 58.0 | 70000 |
1200 x 1200 x 60 mm | 85.0 | 110000 |
1200 x 1200 x 80 mm | 115.0 | 120000 |
1200 x 1200 x 100 mm | 141.0 | 160000 |
1500 x 1500 x 100 mm | 210.0 | 200000 |
2000 x 1000 x 100 mm | 196.0 | 220000 |
3000 x 1000 x 100 mm | 588.0 | 300000 |
| Size ( round ) | Weight ( kg ) | Weight Load ( kg/pad) |
800*50 mm | 25.0 | 35000 |
800 x 60 mm | 30.0 | 40000 |
900 x 50 mm | 30.0 | 45000 |
900 x 60 mm | 35.0 | 50000 |
1000 x 60 mm | 40.0 | 60000 |
1000 x 80 mm | 61.5 | 80000 |
1200 x 60 mm | 66.4 | 90000 |
1200 x 80 mm | 88.5 | 120000 |
1500 x 100 mm | 180.0 | 180000 |
